Product line DAG

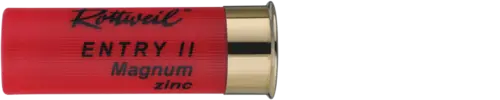

12/70 ROTTWEIL MAGNUM ENTRY II

27.0 g / 417 gr

The 12/70 Magnum ENTRY II is a particular shell used by special police units and military users to forcibly open doors. The shell is fully compatible with pump-action and semi-automatic shotguns. It was developed in close collaboration with various special police units. They repeatedly expressed the requirement that doors should be opened reliably and precisely, even when firing from a distance of 10 m. The shell is therefore capable of safely penetrating a St37 sheet with a material thickness of 1.5 mm at a distance of 10 metres. This is achieved using a special ‘plastic tube’ containing 27 g of the zinc powder.

SINOXID
SHOCKPROOF
MAXIMUM SHELF LIVE
CIP
TEMPERATUR RANGE

Product characteristics

Articlenumber*: 2317400
Product line: DAG
Caliber: 12/70 Magnum
Purpose: Law enforcement, Military
Bulletweight (g): 27.0 g
Bulletweight (gr): 417 gr
Bullet type: Powder pressing in the inner container
Bullet material: Zinc powder (compacted) / Plastic cage
Bullet jacket material: Plastic cage
Bullet core material: Zinc powder (compacted)
Primer cap: SINOXID
Case material: Polymer with brass culot
Propellant powder: Monobasic nitrocellulose powder
Total cartridge mass (g): ca. 45 g
Net explosive mass (g): max. 1.8 g
Weapon category: Semi-automatic shotgun, Pump-action shotgun
Temperature range: -10°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure: max. 1,050 bar (21°C)
Velocity measuring point: v2,5
Velocity (m/s): 380 m/s
Velocity (ft/s): 1,247 ft/s
Energy (J): 1,949 J
Length test barrel: 700 mm

Packaging Configurations

Packaging type: Folding box
Count: 25
Package dimension: 10x10x7 cm
Weight: ca. 0,95 kg

Packaging type: Corrugated cardboard box
Count: 200
Package dimension: 32x22x13 cm
Weight: ca. 8,0 kg
