Product line NATO

12.7x99 LF BALL SX

42.5 g / 656 gr

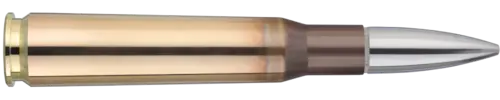

The 12.7x99 LF Ball SX is a lead-free and low-emission load that is engineered for military users. The bullet is based on a steel core, which is completely encased in a tombac jacket. The sheath itself is also tin-plated. The cartridge is intended for use in heavy machine guns such as the Browning M2. It describes the same trajectory as the 12.7x99 LF Tracer SX, which is also available.

SINTOX
SUITABLE FOR FULL AUTOMATIC
WATERPROOF
SHOCKPROOF
MAXIMUM SHELF LIVE
LEADFREE
NATO
LINKED AVAILABLE
STANAG
TEMPERATUR RANGE

Click here to view the content and accept all necessary cookies.
All cookie settings can be managed on this page.

Product characteristics

Articlenumber*: on request
Product line: NATO
Caliber: 12,7x99
Purpose: Law enforcement, Military
Bulletweight (g): 42.5 g
Bulletweight (gr): 656 gr
Bullet type: Full metall jacket-soft core
Bullet material: Steel / Tombac (tinned) / Filler material
Bullet jacket material: Tombac (tinned)
Bullet core material: Steel
Leadfree: Yes
Primer cap: SINTOX
Case material: Brass
Propellant powder: Two-base nitrocellulose powder
Total cartridge mass (g): ca. 116 g
Net explosive mass (g): ca. 17 g
Weapon category: Anti-material rifle, Heavy machine gun
Temperature range: -54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure: max. 4,500 bar (21°C)
Velocity measuring point: v10
Velocity (m/s): 890 m/s
Velocity (ft/s): 2,920 ft/s
Energy (J): 16,832 J
Length test barrel: 1143 mm
Velocity measuring point tolerance (± m/s): 10 ± m/s

Precision data

Accuracy type: sV; SH
Accuracy determination range (m): 485m
Precision requirement: 265 mm ; ≤ 265 mm
Length test barrel: 1143

FN Browning M2

Barrel length:: 1143 mm
Twist length:: 381 mm (1:15")

Ballistic data – Heavy machine gun

Velocity measuring point type II: v10
Velocity (m/s): 890 m/s
Weapon category: Heavy machine gun

Packaging Configurations

Packaging type: Corrugated cardboard box
Count: 10
Package dimension: 11x3x6 cm
Weight: ca. 1,2 kg

Packaging type: M2A1 metal box
Count: 1,000
Package dimension: 31x19.5x15,5 cm
Weight: ca. 15,2 kg
