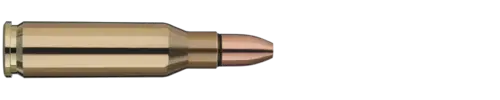

The 4.6x30 is a cartridge that is characterised by its high effectiveness against covered and uncovered soft targets due to a lead-free copper alloy. The lead-free tombac bullet’s controlled deformation enables high energy transfer to the target and hence minimises the risk of collateral damage. The cartridge is therefore ideally suited for use by the police and other law enforcement agencies. It is also suitable for use for for use in training in enclosed spaces or indoor shooting ranges, as the load is lead-free and with low-emission. The cartridge is specially adapted to the requirements of the Heckler & Koch MP7 submachine gun.
Product line DAG
4.6x30 ACTION SX
2.0 g / 31 gr
Product characteristics
- Articlenumber*
- 2316731
- Product line
- DAG
- Caliber
- 4,6x30
- Purpose
- Law enforcement, Military
- Bulletweight (g)
- 2.0 g
- Bulletweight (gr)
- 31 gr
- Bullet type
- Solid
- Bullet material
- Tombac
- Primer cap
- SINTOX
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 6.3 g
- Net explosive mass (g)
- ca. 0.6 g
- Weapon category
- Submachine gun (PDW)
- Temperature range
- -30°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 4,000 bar (21°C)
- Velocity measuring point
- v10
- Velocity (m/s)
- 678 m/s
- Velocity (ft/s)
- 2,224 ft/s
- Energy (J)
- 460 J
- Length test barrel
- 180 mm
- Velocity measuring point tolerance (± m/s)
- 10 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 100 m
- Precision requirement
- ≤ 30 mm
- Length test barrel
- 180
- Barrel length:
- 180 mm
- Twist length:
- 160 mm (1:6.3")
Ballistic data – Submachine gun (PDW)
- Velocity measuring point type II
- v10
- Velocity (m/s)
- 678 m/s
- Weapon category
- Submachine gun (PDW)
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 | Ballistic coefficient G7 |
|---|---|---|---|---|---|
| 0 | 688 | 473 | 0 | ||
| 25 | 641 | 411 | 38 | 0,138 | 0,074 |
| 50 | 597 | 356 | 78 | 0,141 | |
| 100 | 517 | 267 | 168 | 0,149 | 0,083 |
| 150 | 450 | 203 | 271 | 0,153 | |
| 200 | 400 | 160 | 391 | 0,136 | 0,093 |
| 250 | 369 | 136 | 531 | 0,115 | |
| 300 | 348 | 121 | 688 | 0,162 | 0,044 |
| 350 | 855 | 0,179 | |||
| 400 | 1031 | 0,169 | 0,078 | ||
| 450 | 1217 | 0,166 | |||
| 500 | 1412 | 0,163 | 0,087 | ||
| 550 | 1616 | 0,148 | |||
| 600 | 1831 | 0,147 | 0,085 | ||
| 700 | 0,089 | ||||
| 800 | 0,085 | ||||
| 900 | 0,092 | ||||
| 1000 | 0,090 |
Packaging Configurations
- Packaging type
- Folding box
- Count
- 40
- Package dimension
- 8.6x3,3x4,5 cm
- Weight
- approx. 0,3 kg
- Packaging type
- M2A1 metal box
- Count
- 1,920
- Package dimension
- 31x19.5x15,5 cm
- Weight
- ca. 16,5 kg
