The 5.56x45 LF STYX SX cartridge is engineered for special mission scenarios. Its hallmarks include outstanding deformation responses over a wide velocity range. The cartridge is therefore suitable for a broad array of barrel lengths, as reliable deformation is guaranteed over an extremely wide range of velocities. This deformation response ensures high energy transfer to the target and low collateral risk. It is equally and fully compatible with semi-automatic and fully automatic firearms. The LF Styx ACTION SX performs safely and reliably, even at longer ranges. On impact, the lead-free copper bullet deforms into six petals, which remain attached to the bullet body and therefore facilitate wound treatment.
Product line DAG

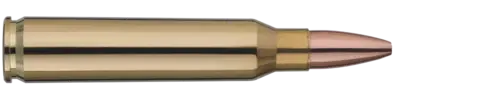

5.56x45 LF STYX ACTION SX
3.7 g / 57 gr
Product characteristics
- Articlenumber*
- 2424460
- Product line
- DAG
- Caliber
- 5,56x45
- Purpose
- Law enforcement, Special forces
- Bulletweight (g)
- 3.7 g
- Bulletweight (gr)
- 57 gr
- Bullet type
- Solid
- Bullet material
- Copper
- Primer cap
- SINTOX
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 12.3 g
- Net explosive mass (g)
- ca. 1.8 g
- Weapon category
- Assault rifle
- Temperature range
- -54°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 4,450 bar (21°C)
- Velocity measuring point
- v10
- Velocity (m/s)
- 920 m/s
- Velocity (ft/s)
- 3,018 ft/s
- Energy (J)
- 1,566 J
- Length test barrel
- 508 mm
- Velocity measuring point tolerance (± m/s)
- 15 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 100 m
- Precision requirement
- ≤ 22 mm
- Length test barrel
- 508
- Barrel length:
- 480 mm
- Twist length:
- 178 mm (1:7")
Ballistic data – Assault rifle
- Velocity measuring point type II
- v10
- Velocity (m/s)
- 863 m/s
- Weapon category
- Assault rifle
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 | Ballistic coefficient G7 |
|---|---|---|---|---|---|
| 0 | 880 | 1433 | 0 | ||
| 25 | 838 | 29 | 0,179 | 0,095 | |
| 100 | 718 | 954 | 126 | 0,177 | 0,097 |
| 200 | 576 | 614 | 281 | 0,179 | 0,100 |
| 300 | 464 | 398 | 476 | 0,197 | 0,115 |
| 400 | 379 | 266 | 715 | 0,206 | 0,135 |
| 500 | 310 | 178 | 1007 | 0,152 | 0,052 |
| 600 | 249 | 115 | 1367 | 0,079 | 0,038 |
| 700 | 200 | 74 | 1816 | 0,062 | 0,037 |
| 800 | 161 | 48 | 2375 | 0,061 | 0,038 |
