Product line NT

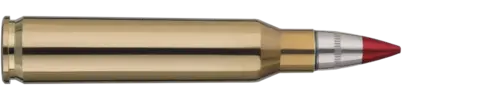

5,56x45 NATO TRACER

4.1 g / 63 gr

The 5.56x45 NATO Tracer is the standard tactical military tracer cartridge for the NATO alliance and its partners. Its compatibility with all NATO firearms is therefore guaranteed. Accordingly, the cartridge can be used for mission scenarios and in training. The bullet itself consists of several components: jacket, lead core, pyrotechnic charges and a cap. It has a dark tracer that conceals the shooter’s position. The visible tracer begins at a range of 13 m to 140 m and illuminates up to a distance of at least 600 m. The cartridge is suitable for use in the most adverse environments and under the harshest climatic conditions in a temperature range from -54°C to +52°C. It is also fully compliant with AEP-97 (M-CMOPI).

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
2422930
Product line
NT
Caliber
5,56x45
Purpose
Law enforcement, Military
Bulletweight (g)
4.1 g
Bulletweight (gr)
63 gr
Bullet type
Tracer
Bullet material
Lead / pyrotechnic charges / Steel (tombac plated)
Bullet jacket material
Steel (tombac plated)
Bullet core material
Lead
Primer cap
SINOXID
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 12,2 g
Net explosive mass (g)
ca. 2,1 g
Weapon category
Assault rifle, Machine gun
Temperature range
-54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 4,450 bar (21°C)
Velocity measuring point
v10
Velocity (m/s)
885 m/s
Velocity (ft/s)
2,904 ft/s
Energy (J)
2,904 J
Length test barrel
508 mm
Velocity measuring point tolerance (± m/s)
15 ± m/s

Precision data

Accuracy type
sV; SH
Accuracy determination range (m)
300 m
Precision requirement
≤ 160 mm
Length test barrel
508
Penetration distance
300 m
Tracer color
Red
Tracer distance (min.)
600 m
Barrel length:
508 mm
Twist length:
178 mm (1:7")

Ballistic data – Assault rifle

Velocity measuring point type II
v10
Velocity (m/s)
885 m/s
Weapon category
Assault rifle
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
091916890
258961606280,337
10082713681150,328
20074010952430,326
3006588663860,325
4005826775480,328
5005115227310,323
6004463989410,316
70039531211800,344
80036025914460,415
90033322217350,412
100031119320460,378
110029116923790,31
120026914527360,221

Packaging Configurations

[Translate to English:]
Packaging type
Folding box
Count
30
Package dimension
10x6x3 cm
Weight
0,40 kg
[Translate to English:]
Packaging type
M2A1 metal box
Count
870
Package dimension
31x19.5x15,5 cm
Weight
ca. 13,8 kg
