The 5.56x45 TRAINING HV SX is a lead free training cartridge for law enforcement and military users. The semi jacket bullet weighing 4.0 g has a tin core encased in a tombac jacket. The exposed projectile core and optimised projectile geometry minimise the risk of ricochets. The cartridge is also ideal for enclosed shooting and training facilities thanks to the combination of SINTOX primer and REACH-compliant propellant powder.
Product line DAG

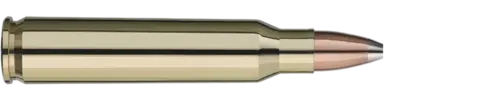

5.56x45 TRAINING HV SX
4.0 g / 62 gr
Product characteristics
- Articlenumber*
- 2319231
- Product line
- DAG
- Caliber
- 5,56x45
- Purpose
- Law enforcement, Military
- Bulletweight (g)
- 4.0 g
- Bulletweight (gr)
- 62 gr
- Bullet type
- Partial jacket
- Bullet material
- Tombac / Tin
- Bullet jacket material
- Tombac
- Bullet core material
- Tin
- Primer cap
- SINTOX
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 12.4 g
- Net explosive mass (g)
- ca. 1.8 g
- Weapon category
- Pistol
- Temperature range
- -20°C to +40°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 4,000 bar (21°C)
- Velocity measuring point
- v10
- Velocity (m/s)
- 850 m/s
- Velocity (ft/s)
- 2,789 ft/s
- Energy (J)
- 1,445 J
- Length test barrel
- 508 mm
- Velocity measuring point tolerance (± m/s)
- 10 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 100 m
- Precision requirement
- ≤ 35 mm
- Length test barrel
- 508
- Barrel length:
- 508 mm
- Twist length:
- 178 mm (1:7")
Ballistic data – Assault rifle
- Velocity measuring point type II
- v10
- Velocity (m/s)
- 693 m/s
- Weapon category
- Assault rifle
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 710 | 1008 | 0 | |
| 25 | 668 | 892 | 36 | 0,157 |
| 100 | 553 | 612 | 160 | 0,161 |
| 200 | 435 | 378 | 365 | 0,178 |
| 300 | 350 | 245 | 622 | 0,18 |
| 400 | 299 | 179 | 934 | 0,164 |
| 500 | 268 | 144 | 1289 | 0,164 |
| 600 | 244 | 119 | 1681 | 0,16 |
| 700 | 224 | 100 | 2110 | 0,161 |
| 800 | 206 | 85 | 2577 | 0,159 |
| 900 | 191 | 73 | 3084 | 0,175 |
| 1000 | 177 | 63 | 3633 | 0,172 |
| 1100 | 164 | 54 | 4229 | 0,176 |
Packaging Configurations
- Packaging type
- Folding box
- Count
- 30
- Package dimension
- 10x6x3 cm
- Weight
- approx. 0,40 kg
- Packaging type
- Corrugated cardboard box
- Count
- 900
- Package dimension
- 32x22x13 cm
- Weight
- ca. 11,5 kg
