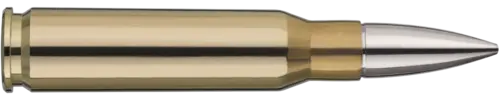

The DM111A2 is the standard cartridge for tactical use and training within the German Armed Forces. It was engineered and qualified to meet their high technical requirements. The product is also fully compliant with the requirements of AEP-97 (M-CMOPI). It is fully compatible with all semi-automatic and fully automatic weapons in this calibre introduced by the German Armed Forces. It uses a completely encapsulated full metal jacket bullet with a lead core. The bullet jacket is made of tin-plated, tombac-plated steel. SINTOX primer technology and a fully encapsulated bullet minimise the user’s exposure to harmful emissions. The cartridge is therefore also suitable for use in indoor facilities.
Product line DM
7.62MMx51, DM111A2, Weichkern
9.6 g / 147 gr
Product characteristics
- Articlenumber*
- 2124203
- Product line
- DM
- Caliber
- 7,62x51
- Purpose
- Military, German Armed Forces
- Bulletweight (g)
- 9.6 g
- Bulletweight (gr)
- 147 gr
- Bullet type
- Full metall jacket-soft core
- Bullet material
- Lead / Steel (tombac-plated, tin-plated)
- Bullet jacket material
- Steel (tombac-plated, tin-plated)
- Bullet core material
- Lead
- Primer cap
- SINTOX
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 24.5 g
- Net explosive mass (g)
- ca. 2.8 g
- Weapon category
- Assault rifle, Medium machine gun
- Temperature range
- -54°C to +63°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 4,450 bar (21°C)
- Velocity measuring point
- v10
- Velocity (m/s)
- 802 m/s
- Velocity (ft/s)
- 2,631 ft/s
- Energy (J)
- 2,926 J
- Length test barrel
- 562 mm
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 100 m
- Precision requirement
- ≤ 16 mm
- Length test barrel
- 562
- Penetration performance
- 3,5 mm SR235JR
- Penetration distance
- 550 m
- Barrel length:
- 406 mm
- Twist length:
- 254 mm (1:10")
Ballistic data – Designated marksman rifle (DMR)
- Velocity measuring point type II
- v10
- Velocity (m/s)
- 818 m/s
- Weapon category
- Designated marksman rifle (DMR)
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 | Ballistic coefficient G7 |
|---|---|---|---|---|---|
| 0 | 825 | 3233 | 0 | ||
| 25 | 807 | 31 | 0,405 | 0,215 | |
| 100 | 754 | 2700 | 127 | 0,401 | 0,216 |
| 200 | 686 | 2235 | 266 | 0,399 | 0,215 |
| 300 | 621 | 1832 | 419 | 0,396 | 0,213 |
| 400 | 559 | 1484 | 589 | 0,389 | 0,213 |
| 500 | 501 | 1192 | 778 | 0,388 | 0,217 |
| 600 | 444 | 936 | 990 | 0,356 | 0,211 |
| 700 | 389 | 719 | 1230 | 0,316 | 0,205 |
| 800 | 342 | 556 | 1505 | 0,28 | 0,202 |
| 900 | 310 | 456 | 1814 | 0,272 | 0,107 |
| 1000 | 288 | 393 | 2149 | 0,274 | 0,12 |
| 1100 | 270 | 346 | 2508 | 0,267 | 0,131 |
| 1200 | 254 | 306 | 2891 | 0,256 | 0,136 |
