The 9x19 LF FMJ SXF is a lead-free tactical and training cartridge for law enforcement and military users. The cartridge is fully compatible with pistols and submachine guns that have been tested with the increased gas pressure specified in the technical guideline for 9 mm tactical ammunition. It has a classic full metal jacket bullet with a zinc core. The combination of lead-free bullet, REACH-compliant propellant powder and spiked heavy metal-free primer reduces the shooter’s exposure to potentially harmful emissions to an absolute minimum. The SINTOX Forensis primer also enables forensic analyses.
![[Translate to English:] [Translate to English:]](/resources/public/user_upload/Images/Artikel/Geschossgraphiken-9mm/9x19-NATO-BALL.png)
Product line DAG

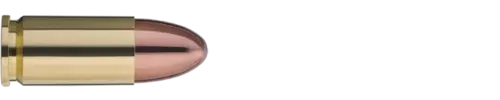

9x19 LF FMJ SXF
6.0 g / 93 gr
![](/resources/public/user_upload/Images/Artikel/New-Format-9mm/9x19_LF_FMJ_SXF_6g.png)
Product characteristics
- Articlenumber*
- 2429870
- Product line
- DAG
- Caliber
- 9x19
- Purpose
- Law enforcement, Military
- Bulletweight (g)
- 6.0 g
- Bulletweight (gr)
- 93 gr
- Bullet type
- Full metall jacket-soft core
- Bullet material
- Tombac / Zinc
- Bullet jacket material
- Tombac
- Bullet core material
- Zinc
- Primer cap
- SINTOX Forensis
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca, 12,0 g
- Net explosive mass (g)
- ca. 0,5 g
- Weapon category
- Pistol, Submachine gun
- Temperature range
- -20°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 2,350 bar (21°C)
- Velocity measuring point
- v3
- Velocity (m/s)
- 435 m/s
- Velocity (ft/s)
- 1,427 ft/s
- Energy (J)
- 568 J
- Length test barrel
- 150 mm
- Velocity measuring point tolerance (± m/s)
- 15 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 25 m
- Precision requirement
- ≤ 25 mm
- Length test barrel
- 150
![](/resources/public/_processed_/3/9/csm_HK_SFP9_3193dcee3d.png)
- Barrel length:
- 104 mm
- Twist length:
- 250 mm (1:10")
Ballistic data – Pistol
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 419 m/s
- Weapon category
- Pistol
Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
---|---|---|---|---|
0 | 419 | 527 | 0 | |
25 | 392 | 461 | 62 | 0,156 |
50 | 369 | 408 | 127 | 0,159 |
100 | 333 | 333 | 271 | 0,161 |
150 | 307 | 283 | 427 | 0,155 |
200 | 288 | 249 | 596 | 0,156 |
250 | 272 | 222 | 775 | 0,153 |
300 | 259 | 201 | 963 | 0,16 |
350 | 247 | 183 | 1161 | 0,158 |
400 | 236 | 167 | 1368 | 0,156 |
450 | 226 | 153 | 1585 | 0,158 |
500 | 217 | 141 | 1811 | 0,163 |
550 | 208 | 130 | 2047 | 0,16 |
600 | 199 | 119 | 2294 | 0,147 |
![](/resources/public/_processed_/b/7/csm_HK_MP5_1bc188671a.png)
- Barrel length:
- 225 mm
- Twist length:
- 254 mm (1:10")
Ballistic data – Submachine gun
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 419 m/s
- Weapon category
- Submachine gun
Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
---|---|---|---|---|
0 | 469 | 660 | 0 | |
25 | 438 | 576 | 55 | 0,158 |
50 | 409 | 502 | 114 | 0,153 |
100 | 361 | 391 | 245 | 0,157 |
150 | 327 | 321 | 390 | 0,158 |
200 | 303 | 275 | 549 | 0,158 |
250 | 285 | 244 | 720 | 0,158 |
300 | 270 | 219 | 900 | 0,155 |
350 | 257 | 198 | 1090 | 0,161 |
400 | 245 | 180 | 1290 | 0,151 |
450 | 235 | 166 | 1498 | 0,168 |
500 | 225 | 152 | 1717 | 0,162 |
550 | 215 | 139 | 1945 | 0,147 |
600 | 206 | 127 | 2183 | 0,153 |
