Product line NATO

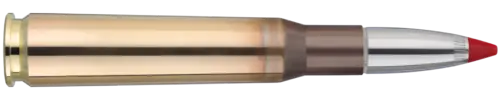

12.7x99 LF TRACER SX

40.5 g / 625 gr

The 12.7x99 LF Tracer SX was designed and engineered for military users. It is fully compatible with heavy machine guns. Accordingly, the cartridge can be used for mission scenarios and in training. The bullet consists of two components, namely the steel core and the pyrotechnic charge inserted in the tail. It has a dark tracer that conceals the shooter’s position. The visible tracer begins at a range of 0 m to 200 m and illuminates up to a distance of at least 1,500 m.

SINTOX
SUITABLE FOR FULL AUTOMATIC
WATERPROOF
SHOCKPROOF
MAXIMUM SHELF LIVE
LEADFREE
NATO
LINKED AVAILABLE
STANAG
TEMPERATUR RANGE

Click here to view the content and accept all necessary cookies.
All cookie settings can be managed on this page.

Product characteristics

Articlenumber*: on request
Product line: NATO
Caliber: 12,7x99
Purpose: Law enforcement, Military
Bulletweight (g): 40.5 g
Bulletweight (gr): 625 gr
Bullet type: Tracer
Bullet material: Steel / Tombac (tinned) / Filler material / pyrotechnic charges
Bullet jacket material: Tombac (tinned)
Bullet core material: Steel
Leadfree: Yes
Primer cap: SINTOX
Case material: Brass
Propellant powder: Two-base nitrocellulose powder
Total cartridge mass (g): ca. 113 g
Net explosive mass (g): ca. 16.5 g
Weapon category: Heavy machine gun
Temperature range: -54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure: max. 4,500 bar (21°C)
Velocity measuring point: v10
Velocity (m/s): 890 m/s
Velocity (ft/s): 2,920 ft/s
Energy (J): 16,040 J
Length test barrel: 1143 mm
Velocity measuring point tolerance (± m/s): 10 ± m/s

Precision data

Accuracy type: sV; SH
Accuracy determination range (m): 485m
Precision requirement: 353 mm ; ≤ 353 mm
Length test barrel: 1143
Tracer color: Red
Tracer visibility: 1500 m

FN Browning M2

Barrel length:: 1143 mm
Twist length:: 381 mm (1:15")

Ballistic data – Heavy machine gun

Velocity measuring point type II: v10
Velocity (m/s): 883 m/s
Weapon category: Heavy machine gun

Packaging Configurations

Packaging type: Folding box
Count: 10
Package dimension: 11x3x6 cm
Weight: ca. 1,2 kg

Packaging type: M2A1 metal box
Count: 100
Package dimension: 31x19.5x15,5 cm
Weight: ca. 15,2kg
