Product line NATO

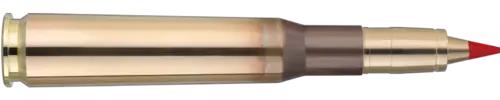

12.7x99 SR SOLID TRACER SX

45.8 g / 708 gr

The 12.7 SR Solid Tracer SX is a lead-free training and tactical cartridge for military users. The lead-free bullet made of turned brass has a special bullet geometry that greatly increases the air resistance in flight. The pyrotechnic charge has a dark ignition tracer that conceals the shooter’s position. The visible tracer begins at a range of 0 m to 200 m and illuminates up to a distance of at least 1,000 m, reducing the danger zone and the maximum flight range to 4.0 km. It is fully compatible with heavy machine guns of the FN Bowning M2 type.

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
on request
Product line
NATO
Caliber
12,7x99
Purpose
Law enforcement, Military
Bulletweight (g)
45.8 g
Bulletweight (gr)
708 gr
Bullet type
Solid Tracer
Bullet material
pyrotechnic charges / Steel (plated) / Brass
Leadfree
Yes
Primer cap
SINTOX
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 125 g
Net explosive mass (g)
ca. 16.4 g
Weapon category
Heavy machine gun
Temperature range
-54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 4,500 bar (21°C)
Velocity measuring point
v10
Velocity (m/s)
862 m/s
Velocity (ft/s)
2,828 ft/s
Energy (J)
17,016 J
Length test barrel
1143 mm
Velocity measuring point tolerance (± m/s)
10 ± m/s

Precision data

Accuracy type
sx; sy
Accuracy determination range (m)
300 m
Precision requirement
≤ 110 mm
Length test barrel
1143
Tracer color
Red
Tracer distance (min.)
1000 m
Barrel length:
1143 mm
Twist length:
381 mm (1:15")

Ballistic data – Heavy machine gun

Velocity measuring point type II
v10
Velocity (m/s)
862 m/s
Weapon category
Heavy machine gun

Packaging Configurations

Packaging type
M2A1 metal box
Count
100
Package dimension
31x19.5x15,5 cm
Weight
ca. 16,8 kg
